| Brand | MAXWELL |
|---|---|
| Type | Full Carbon Suspension MTB frame |
| Model Frame | P1 |
| Material | 100% carbon fiber Toray T700 |
| Weave | UD matt |
| Color | Customized |
| Bottom Bracket | BSA |
| Available Size | S/M/L/XL |
| Front & Rear fork travel | 130mm |
| Max Tire Size | 27.5*2.8″ or 29*2.3″ |
| If XDR groupset | 27.5*2.5″ or 29*2.3″ |
| Headtube | TOP:1-1/8”,DOWN:1-1/2″ |
| Frame Weight | 2350±40g(XS) |
| Rear Rock Size | 200*51mm |
| Rear hanger | 148*12mm |
| Painting | Painting colors, size, logo, or accessories can all be customized |

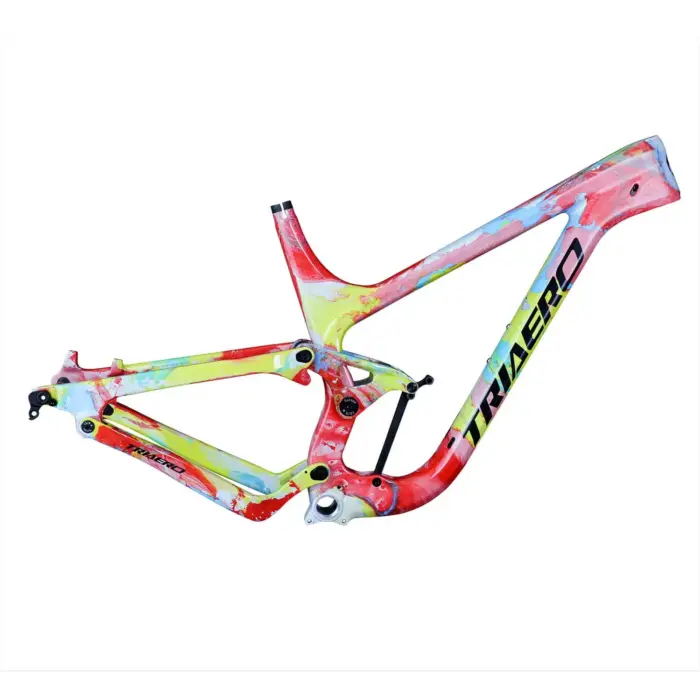

MAXWELL Carbon Mountain Bike Frame-P1
Premium Materials:
Crafted from top-grade Japanese Toray fiber, our full carbon frame achieves the perfect balance of stiffness, strength, and impact resistance. Using a specialized latex coated EPS molding process, we create sharp frame lines with precise edge control, maximizing strength-to-weight ratio and minimizing material waste.
Enhanced Pivot Technology:
Our Collet main pivot technology enhances rear end stiffness and ensures secure pivot hardware. Bearing shields protect against contamination during bike washing or wet rides, maintaining optimal performance.
High-Performance Bearings:
Equipped with Torque suspension pivot bearings in standard sizes for easy worldwide availability. C-clips secure rocker bearings under torsional stress, ensuring reliability on every ride.
Convenient Features:
Featuring a threaded 73mm bottom bracket shell for effortless crankset maintenance and noise reduction. With dual water bottle mounts for extended rides and flex stay system for weight savings without sacrificing durability. User-friendly cable routing through guide tubes ensures easy maintenance and noise-free operation.
Geometry：
|
SIZE
|
XS
|
S
|
M
|
L
|
XL
|
|
S
|
367.6mm
|
391.8mm
|
440.5mm
|
492.3mm
|
541.4mm
|
|
SP
|
270.2mm
|
282.6mm
|
324.5mm
|
333mm
|
384.4 mm
|
|
SC
|
74.2°
|
74.1°
|
74°
|
73.9°
|
73.8°
|
|
SL
|
60.5mm
|
71.1mm
|
91.9mm
|
113.8mm
|
134.6mm
|
|
O
|
562.1mm
|
587.6mm
|
616.4mm
|
635.6mm
|
672.6 mm
|
|
OS
|
525mm
|
542 mm
|
562mm
|
578.5mm
|
611.3mm
|
|
HS
|
95mm
|
95mm
|
105mm
|
115mm
|
120mm
|
|
HC
|
68.5°
|
68.5°
|
68.5°
|
68.5°
|
68.5°
|
|
F
|
551mm
|
551mm
|
551mm
|
551mm
|
551mm
|
|
OT
|
51mm
|
51mm
|
51mm
|
51mm
|
51mm
|
|
WB
|
1117.3mm
|
1142.1mm
|
1170.1
|
1189.4mm
|
1226mm
|
|
FC
|
675.3mm
|
700.1mm
|
728.7mm
|
747.4mm
|
784mm
|
|
RC
|
443mm
|
443mm
|
443mm
|
443mm
|
443mm
|
|
G
|
24.1mm
|
24.1mm
|
24.1mm
|
24.1mm
|
24.1mm
|
|
Stack
|
606.7mm
|
606.7mm
|
615.8mm
|
625mm
|
629.3mm
|
|
Reach
|
390.3mm
|
415mm
|
440.1mm
|
455.2mm
|
490.2mm
|
Custom Painting Services:
We have a professional design and painting team to provide you with professional customized painting services.
