LT-FC02

LT-GR01-M820

Original price was: $8,000.00.Current price is: $7,999.00.

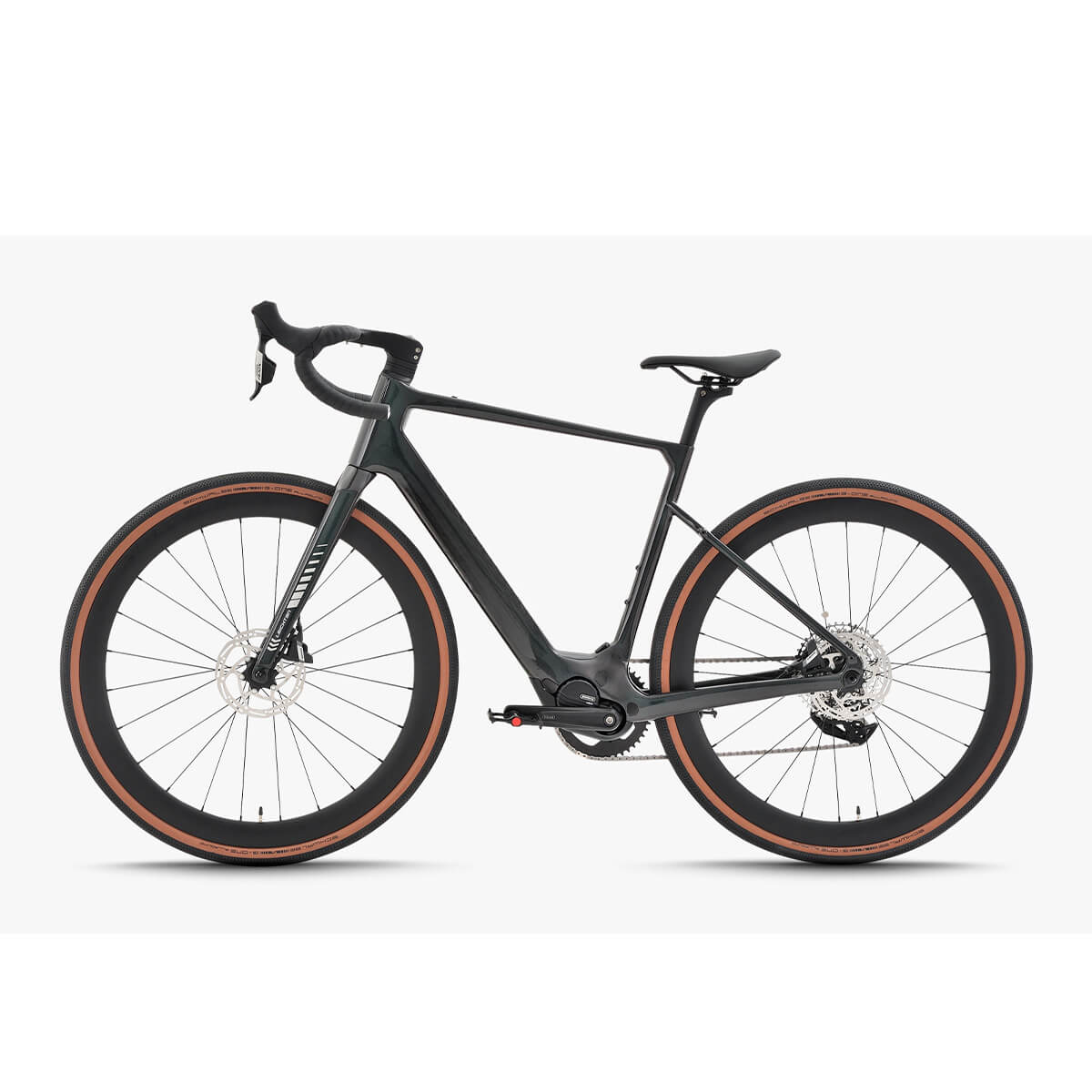

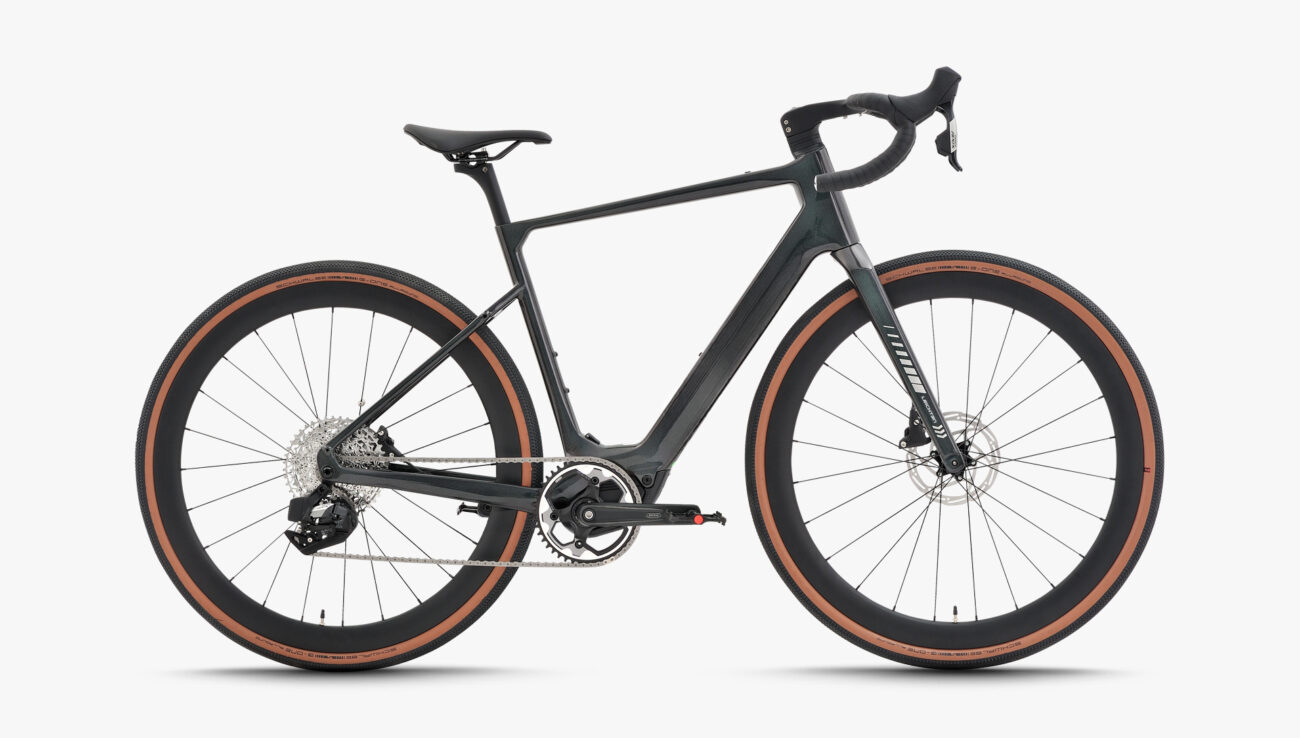

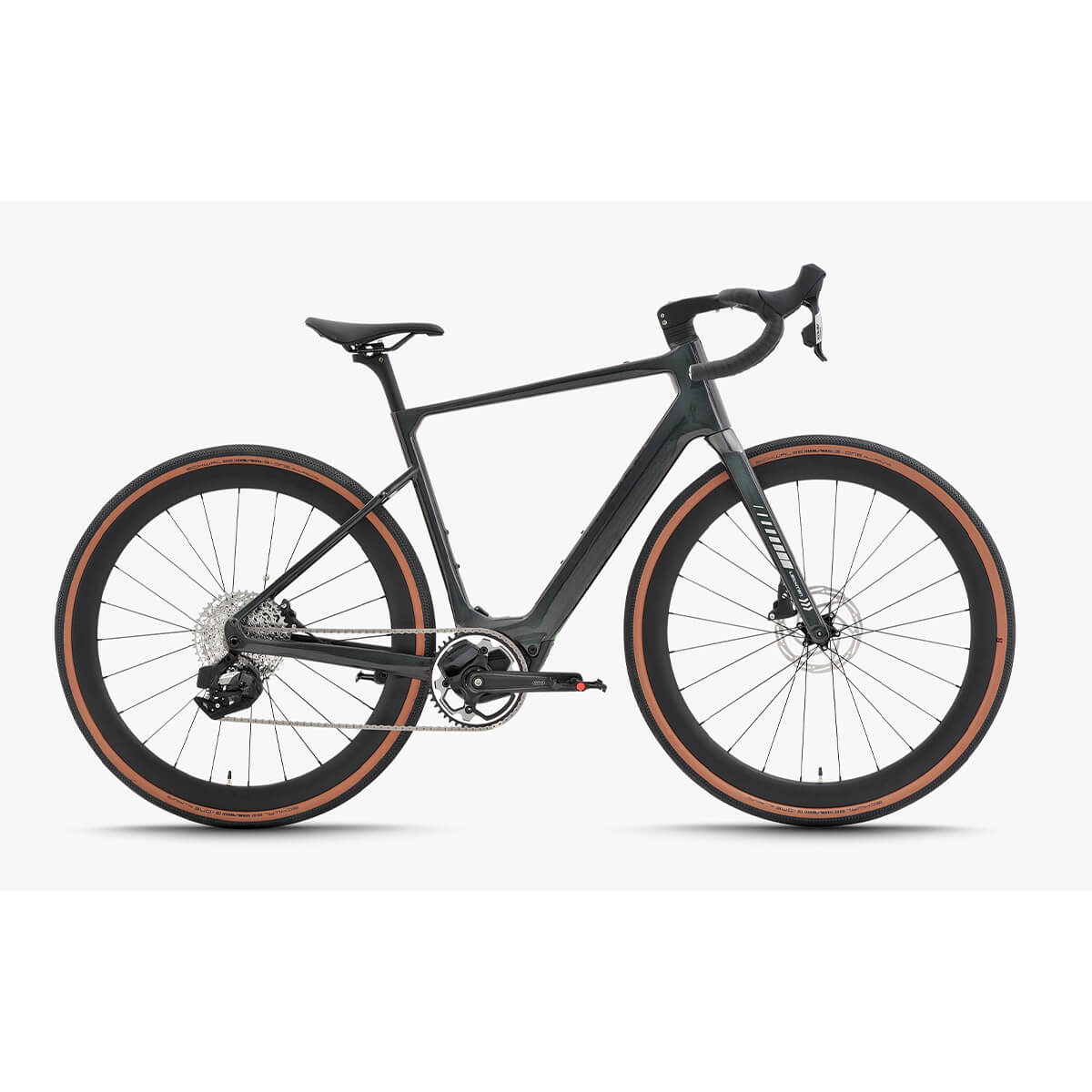

LT-GR01-M820 with simple design carbon frame. Hidden battery and small motor. Light weight by carbon fiber frame,fork and rim.

Compare
Add to wishlist

Size and packaging guidelines

Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.

Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.

Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.

Specification Chair Armchair Sofas
Height 37" 42" 42"
Width 26.5" 32.5" 142"
Depth 19.5" 22.5" 24.5"
Assembly Required No No Yes
Packaging Type Box Box Box
Package Weight 55 lbs. 64 lbs. 180 lbs.
Packaging Dimensions 27" x 26" x 39" 45" x 35" x 24" 46" x 142" x 25"
Size Guide
Category:
Description

Bicycle Specification

Frame size 28*17/ 28*18/ 28*19str_replace
Color OEM Color
Material Carbon fiber
Suspension  Front as options
Max speed 25km/h
Tire  Front and rear 700C*40C
Brake Disc / hydraulic brake
Battery 36V9.5AH/342WH
E-System Bafang M820 Mid.Motor (250W)
Ebike Size  187*68*110CM
Packing size  148*26*80CM
N.W/G.W 23.8KG/28.8KG
Battery Hidden in frame and removable
MAX Cells 30PCS
MAXcapacity 36V10.5ah
Charging Port  DC2.1
USB port available
Motor Bafang M820,250w
Display DP E165.CAN
Front Light LED
Rear Light LED
Brake  Hydraulic Disc-brake,SRAM
Sprocket crank 36V2A
Front Hub c15mm*10mm 2bearings
Rear Hub c12mm*148mm 4bearings
Fork Carbon fiber
Rear Suspension  N/A
Tire 700*40C
Mudguards N/A

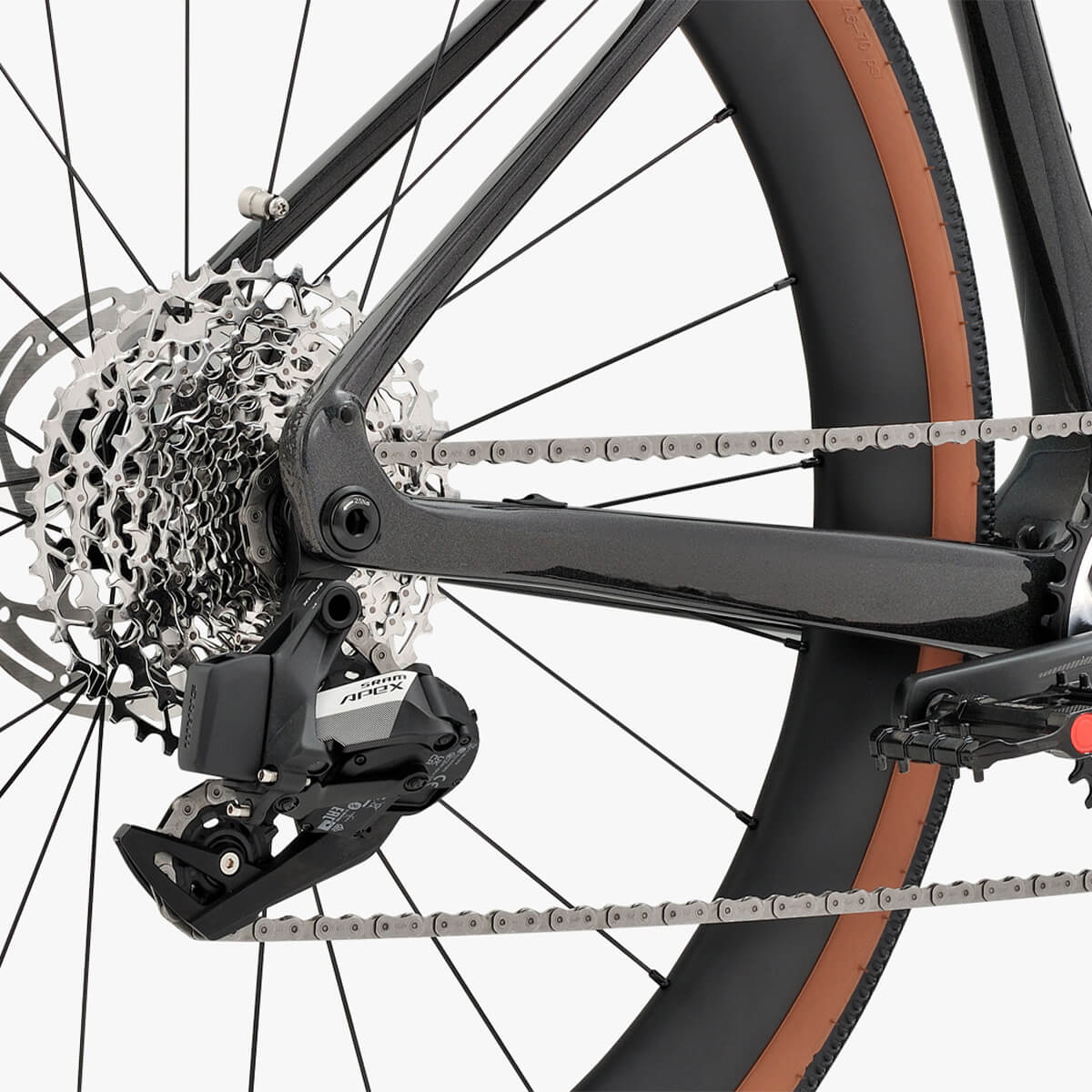

Shifting Lever RD-APEX-1E-D1 SRAM electronic 12S
Rear Derailleur SRAM 12speed
Cassette SRAM 12speed
Chain  KMC
Sprocket crank Aluminum alloy 44T
Saddle 2101H Soft comfortable,SR
Seat post Carbon fiber
storage rack  Optional
