Name: Instinct Carbon 70 - Bicycle parts and accessories, complete bicycles
Price: 7999.00 USD
Availability: InStock

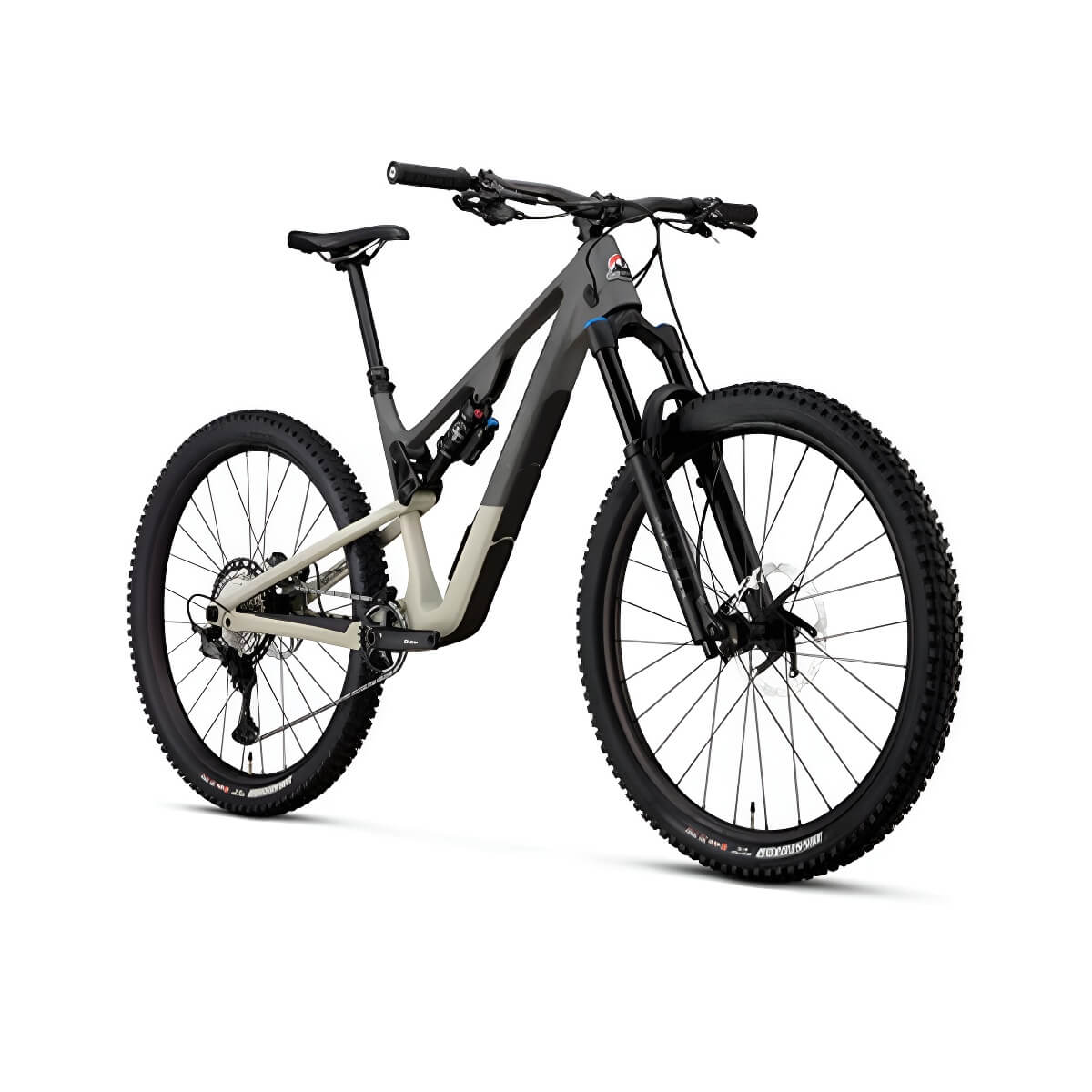

Instinct Carbon 70

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs.

Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.

SKU: N/A Category: MTB

Specifications

Frame	SMOOTHWALL™ Carbon \| Full Sealed Cartridge Bearings \| Press Fit BB \| Internal Cable Routing \| 2-Bolt ISCG05 Tabs \| RIDE-4™ Adjustable Geometry \| 2 Position Axle \| 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork	Fox 36 Float EVOL GRIP2 Performance Elite Series 150mm \| 27.5 = 37mm Offset \| 29 = 44mm Offset
Front Travel	150
Shock	Fox Float X Performance Elite \| Sealed Bearing Eyelet \| 20x8mm F Hardware \| XS – SM = 190x45mm \| MD – LG – XL = 210×52.5mm \| Size-Specific tune in FAQ
Rear Travel	140
Headset	FSA Orbit NO.85 Reach Adjust\| 0mm Cups Installed \| +/- 5mm Cups Included \| Durable Sealed Stainless 36°x45° Bearings \| 30.2mm x 41mm x 7.1mm Upper \| 40mm x 51.8mm x 7.5mm Lower \| 1.5″ Crown Race
Stem	Rocky Mountain 35 AM \| 5° Rise \| All Sizes = 40mm
Handlebar	Rocky Mountain AM Carbon 780mm
Grips	ODI Elite Pro Lock On
Brakes	Shimano XT Trail 4 Piston \| Metal Pads
Shifters	Shimano XT
Rear Derailleur	Shimano XT
Cranks & Chainring	Race Face Turbine Cinch \| 32T \| 30mm Spindle \| Crankarm Length: XS – SM = 165mm \| MD – XL = 170mm

Bottom Bracket	Race Face BB92 30mm
Cassette	Shimano XT 10-51T
Chain	Shimano M8100
Front Hub	Rocky Mountain SL Sealed Boost 15mm
Rear Hub	DT Swiss 370 Boost 148mm \| 18T Star-Ratchet
Spokes	DT Swiss Competition 2.0/1.8/2.0
Rims	Race Face AR 30 \| 28H / Tubeless Ready – Tape / Valves Incl
Tires	F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready //
Seatpost	Race Face Turbine R (by Fox) Dropper 30.9mm \| XS = 125mm \| SM = 150mm \| MD = 175mm \| LG – XL = 200mm
Saddle	WTB Volt Race 142
Weight	30.9 LBS\|14 KGS
Notes	We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.

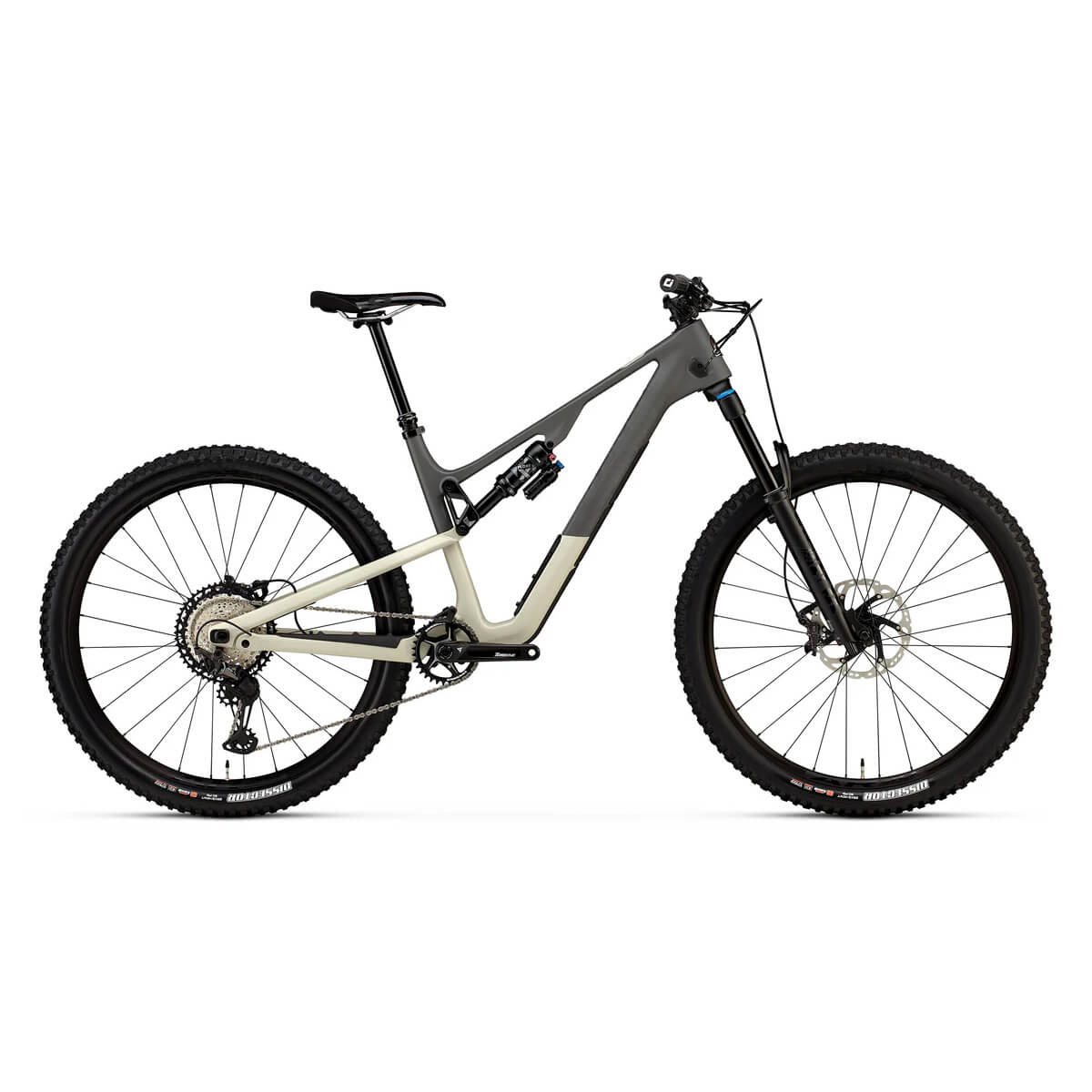

View from drive side

	sm	md	lg	xl
Top Tube Horizontal (mm)	572	621	640	649
Head Tube Angle (deg)	63.5	63.5	63.5	63.5
Head Tube Length (mm)	100	110	125	135
Seat Tube Angle (deg)	76.5	76.5	76.5	76.5
Seat Tube Length (mm)	365	410	440	470
Rear Centre (mm)	440 – 450	440 – 450	440 – 450	440 – 450
Bottom Bracket Drop (mm)	44	44	44	44
Reach (mm)	423	449	474	504
Stack (mm)	572	599	628	659
Standover Height (mm)	760	798	796	792
Wheelbase (mm)	1198	1227	1259	1293

Standover height is measured 200 mm in front of the bottom bracket.

These figures are a rough guide only. Rider proportions, riding style, and personal preferences all factor in choosing the correct bike size. Rocky Mountain always recommends test riding and professional bike fitting at an authorized dealer.

Frame Size

XS|SM|MD|LG|XL

147.5 – 157.5 cm / 4’7” – 52”

Wheel Size

27.5

Size

color

Smokin' in the Boys Room

Bad to the Bone

Instinct Carbon 70

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs.

Specifications

Frame Size
