Specifications
| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry |160mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
| Fork | Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Front Travel | 170 |

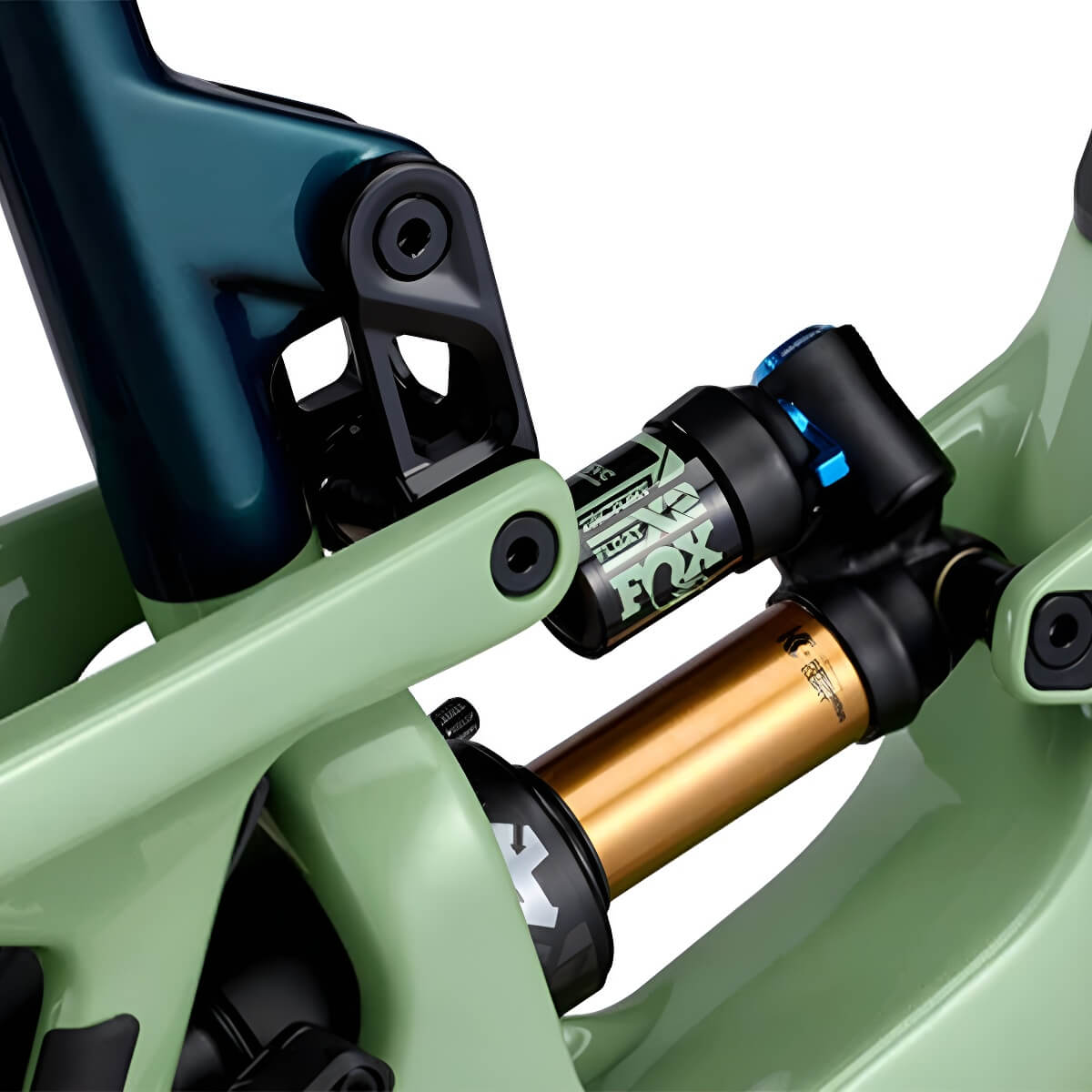

| Shock | Fox Float X2 Factory | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD – LG – XL = 230x60mm | Size-Specific tune in FAQ |
| Rear Travel | 160 |

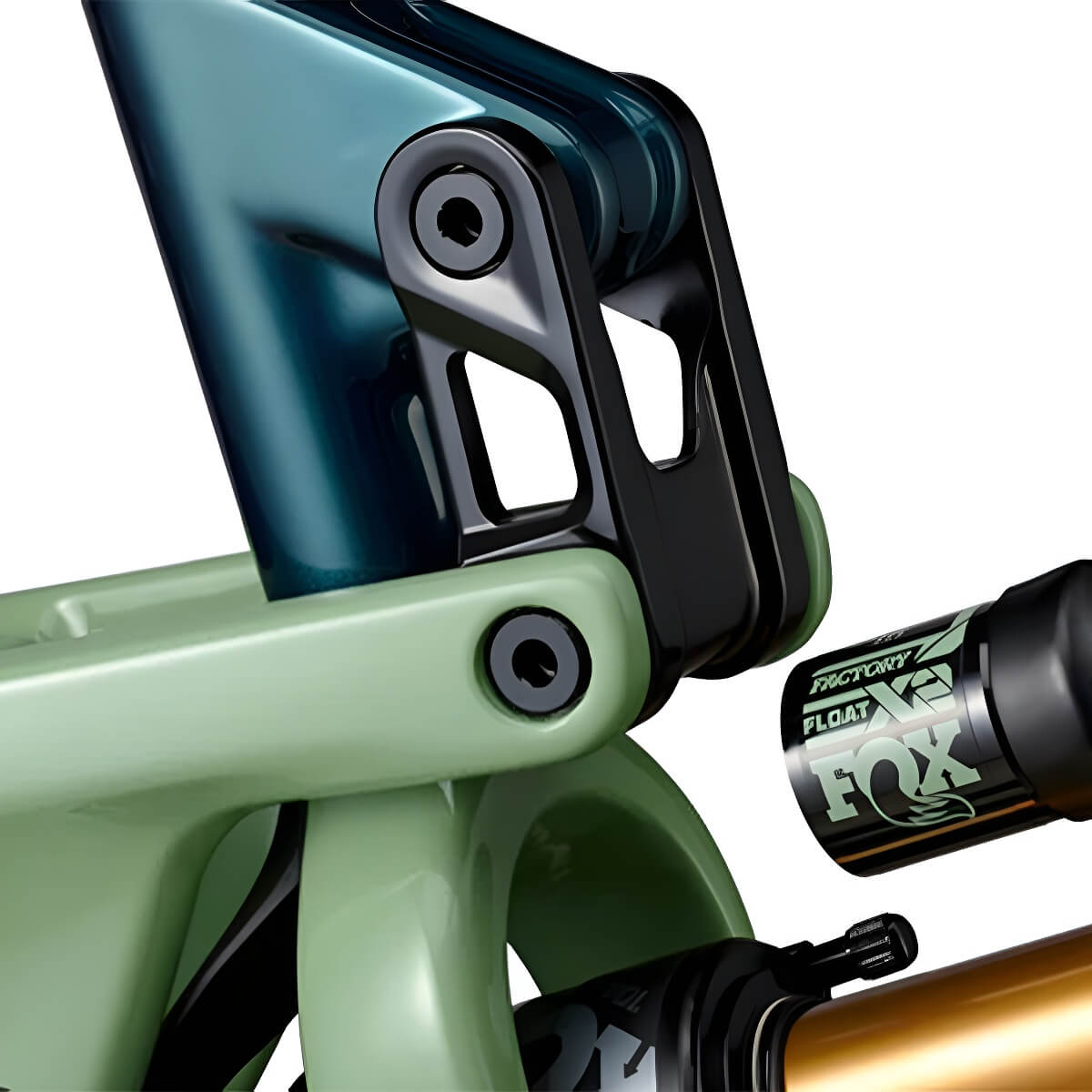

| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Race Face Turbine R | 0° Rise | All Sizes = 40mm |
| Handlebar | Race Face Next R | 780mm Width | 35mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano XTR Trail 4 Piston | IceTec Metal Pads |
| Shifters | Shimano XTR |
| Rear Derailleur | Shimano XTR |
| Cranks & Chainring | Race Face Turbine Cinch | 32T | 30mm Spindle | SM = 165mm | MD – XL = 170mm |
| Bottom Bracket | Race Face BSA 73 30mm |
| Cassette | Shimano XTR 12s 10-51T |
| Chain | Shimano XTR 12s |
| Front Hub | DT Swiss 350 Boost 15mm |
| Rear Hub | DT Swiss 350 Boost 148mm | 36T Star-Ratchet |
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Rims | Race Face ARC Carbon 31 | 32H / Tubeless Ready – Tape / Valves Incl |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready // Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection |
| Seatpost | Fox Transfer Factory Series 30.9mm | SM = 150mm | MD = 175mm | LG – XL = 200mm |
| Saddle | WTB Volt Race 142 |
| Weight | 33.9 LBS|15.4 KGS |
| Notes | We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification |

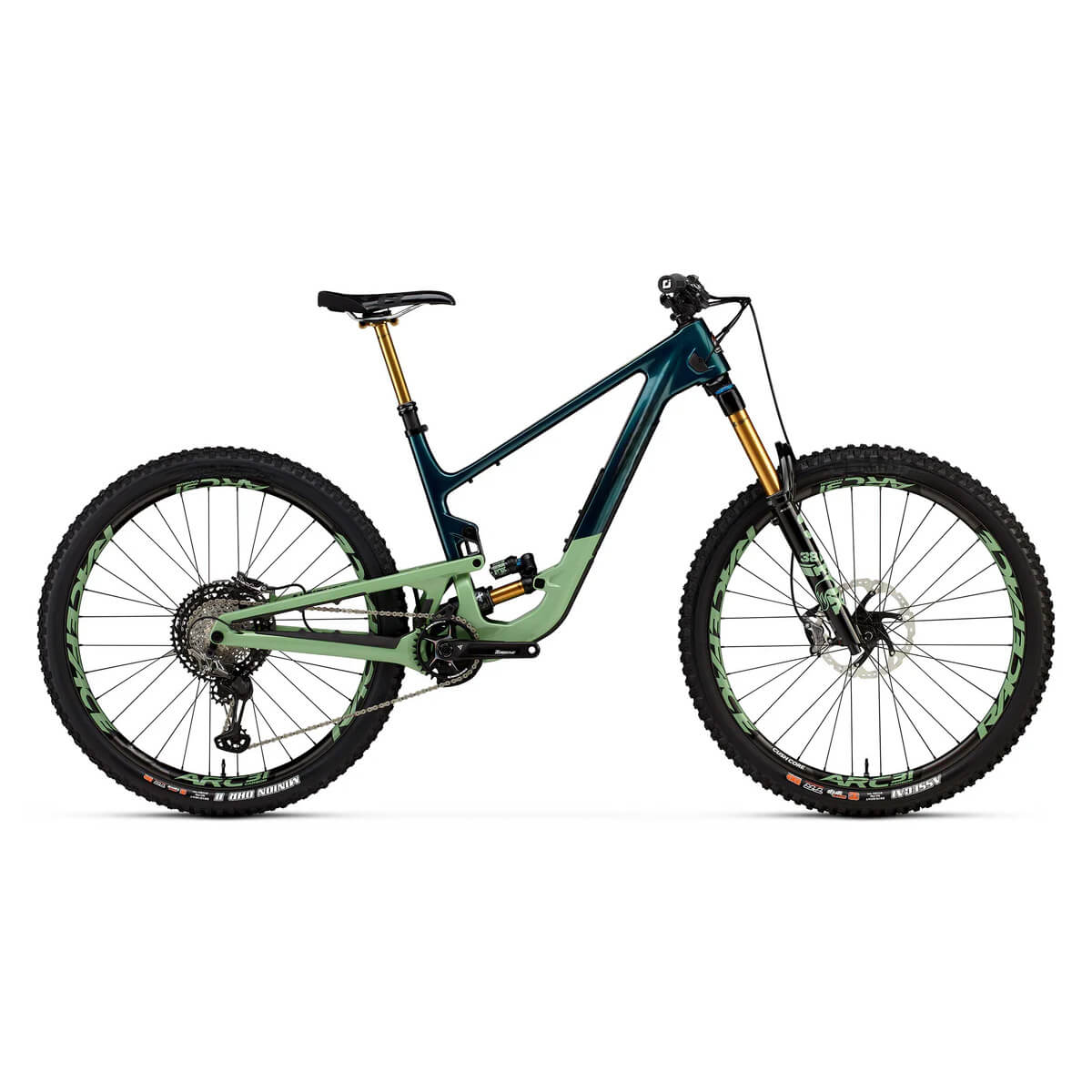

View from drive side
| md | lg | xl | |
|---|---|---|---|
| Top Tube Horizontal (mm) | 584 | 610 | 642 |
| Head Tube Angle (deg) | 62.9 | 62.9 | 62.9 |
| Head Tube Length (mm) | 105 | 115 | 130 |
| Seat Tube Angle (deg) | 77 | 77 | 77 |
| Seat Tube Length (mm) | 410 | 440 | 470 |
| Rear Centre (mm) | 440 | 450 | 450 |
| Bottom Bracket Drop (mm) | 29 | 29 | 29 |
| Reach (mm) | 450 | 475 | 505 |
| Stack (mm) | 630 | 639 | 653 |
| Standover Height (mm) | 791 | 797 | 808 |
| Wheelbase (mm) | 1243 | 1282 | 1319 |
Standover height is measured 200 mm in front of the bottom bracket.
